N-th Derivative of Special Function

MIT has a cute little problem in their calculus problem set, which you can see here. I like this problem because it takes something complicated and shows that it actually reduces down to something very simple.

To start this problem off let’s suppose we have a function that we can write as the product of two other functions, y = u(x)v(x) . There are many such functions. For example, y(x) = x^2sin(x) .

To find the derivative we would need to use the power rule. To get warmed up let’s take two derivatives of y = u(x)v(x) .

y' = u'v + uv' (that’s just the product rule definition).

Applying the rule again we get four terms, two from the first product and two from the second:

y'' = u''v +u'v'  + u'v' + uv''

We can combine terms to get:

y'' = u''v + 2u'v' + uv''

This process can continue and indeed the problem set gives us Libniz’s formula for the n-th derivative, which is:

y^{(n)} = u^{(n)}v + \binom{n}{1}u^{(n-1)}v^{(1)} + \binom{n}{2}u^{(n-2)}v^{(2)} + \cdots + uv^{(n)}

This formula may look daunting at first, but it’s really pretty simple. Note that we are not raising our functions to powers, u^{(n-1)} means the (n - 1) -st derivative. Let’s apply Libniz’s formula to the second derivative of y(x) above.

y^{(2)} = u^{(2)}v + \binom{2}{1}u^{(2-1)}v^{(1)} + uv^{(2)}

y^{(2)} = u^{(2)}v + \frac{2!}{1!(2-1)!}u^{(2-1)}v^{(1)} + uv^{(2)}

y^{(2)} = u^{(2)}v + 2u^{(1)}v^{(1)} + uv^{(2)}

This is exactly what we got above, the only difference is the notation.

The problem now asks us to calculate y^{(p+q)} if y = x^p(x+a)^q .

Before we begin let’s make a few observations that will help us along the way. First, in this example  our u(x) is x^p and v(x) is (x+a)^q .

Next, let me remind you about two well known facts of x^p. As an example, I’ll take p to be 3 . Then we just have the following, where I will adopt the same notation used in Libniz’s formula.

y = x^3

y ^{(1)}= 3 \cdot x^2

y ^{(2)}= 3 \cdot 2 \cdot x^1

y ^{(3)}= 3 \cdot 2 \cdot 1

y ^{(4)}=  0

So what have we learned? Well, first we know that all derivatives higher than order p are 0. In our example, p was 3, and by the fourth derivative we got 0. Of course the derivative of 0 is 0, so from here on out (for all derivatives of order greater than 3), we’re going to get 0.

The second thing to notice is that the p-th derivative is actually p! . Again, in this case p was 3 and for y ^{(3)} our answer was 3 \cdot 2 \cdot 1 , otherwise known as 3! .

These two rules also hold for (x+a)^q . True, we have to use the chain rule, but of course the derivative of x+a is just 1.

Given what we’ve learned let’s move forward writing out the first few terms of Leibniz’s formula with our given y(x) .

y^{(p+q)} =x^{p^{(p+q)}}(x+a)^q + \binom{p+q}{1}x^{p^{(p+q-1)}}(x+a)^{q^{(1)}} + \binom{p+q}{2}x^{p^{(p+q-2)}}(x+a)^{q^{(2)}} + \cdots

So far all of these terms are 0 since the derivatives of x^p are of higher order than p . We can ask when they will stop being 0. This occurs on the (q+1) -st term when the derivative is p + q - q, which is just p . So we know that’s the first non-zero term. Let’s start with that term and write out the next few terms.

y^{(p+q)} =\binom{p+q}{q}x^{p^{(p+q-q)}}(x+a)^{q^{(q)}} + \binom{p+q}{q+1}x^{p^{(p+q-(q+1))}}(x+a)^{q^{(q+1)}} +\binom{p+q}{q+2}x^{p^{(p+q-(q+2))}}(x+a)^{q^{(q+2)}} + \cdots

Notice what happens here. For derivatives of order higher than q the (x+a)^q term is 0. So we are left with only a single term! That term is:

y^{(p+q)} =\binom{p+q}{q}x^{p^{(p+q-q)}}(x+a)^{q^{(q)}}

But this can be simplified using our rules from above. We can replace x^{p^{(p+q-q)}} with p! since this is the p-th derivative of x^p and (x+a)^{q^{(q)}} with q! since it’s the q-th derivative of (x+a)^q .

y^{(p+q)} =\binom{p+q}{q}p!q!

And now we can expand the binomial term. Recall that \binom{n}{k} = \frac{n!}{k!(n-k)!} .

y^{(p+q)} = \frac{(p+q)!}{q!(p+q-q)!}p!q!

y^{(p+q)} = \frac{(p+q)!}{q!p!}p!q!

y^{(p+q)} =(p+q)!

See what I mean! The derivatives of the product of two fairly general functions just turns into a few multiplications.

Advertisements

Distribution Convergence

Let’s do a problem from Chapter 5 of All of Statistics.

Suppose X_1, \dots X_n \sim \text{Uniform(0,1)} . Let Y_n = \bar{X_n}^2 . Find the limiting distribution of Y_n .

Note that we have Y_n = \bar{X_n}\bar{X_n}

Recall from Theorem 5.5(e) that if X_n \rightsquigarrow X and Y_n \rightsquigarrow c  then X_n Y_n \rightsquigarrow cX .

So the question becomes does X_n \rightsquigarrow c  so that we can use this theorem? The answer is yes. Recall that from Theorem 5.4(b) X_n \overset{P}{\longrightarrow} X implies that X_n \rightsquigarrow X . So if we can show that we converge to a constant in probability we know that we converge to the constant in distribution. Let’s show that \bar{X}_n \overset{P}{\longrightarrow} c . That’s easy. The law of large numbers tells us that the sample average converges in probability to the expectation. In other words \bar{X}_n \overset{P}{\longrightarrow} \mathbb{E}[X] . Since we are told that X_i is i.i.d from a Uniform(0,1) we know the expectation is \mathbb{E}[X] = .5 .

Putting it all together we have that:

Y_n = \bar{X_n}^2
Y_n = \bar{X_n}\bar{X_n}
Y_n \rightsquigarrow \mathbb{E}[X]\mathbb{E}[X] (through the argument above)
Y_n \rightsquigarrow (.5)(.5)
Y_n \rightsquigarrow .25

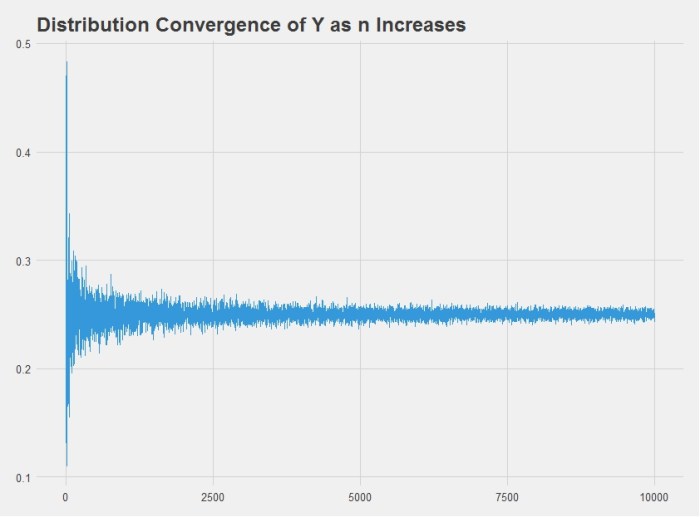

We can also show this by simulation in R, which produces this chart:

y_convergence

Indeed we also get the answer 0.25. Here is the R code used to produce the chart above:

# Load plotting libraries
library(ggplot2)
library(ggthemes)

# Create Y = g(x_n)
g = function(n) {
  return(mean(runif(n))^2)
}

# Define variables
n = 1:10000
Y = sapply(n, g)

# Plot
set.seed(10)
df = data.frame(n,Y)
ggplot(df, aes(n,Y)) +
  geom_line(color='#3498DB') +
  theme_fivethirtyeight() +
  ggtitle('Distribution Convergence of Y as n Increases')

A Quick Little Proof

Prove that mn is odd if and only if both m and n are odd. We can write this in mathamatical notation as mn \in \mathbb O \Longleftrightarrow m,n \in \mathbb O

Let’s first prove that if both m and n are odd then their product is odd. An odd number is of the form two times and integer plus one. So let m = 2r + 1 and 2q + 1 . Then mn = (2r + 1)(2q  + 1) = 4rq + 2r  + 2q + 1 = 2(2rq + r + q) + 1 . Which is odd, by definition, it’s two time an integer — in this case the integer is 2(2rq + r + q)  — plus one.

Now we have to prove things in the other direction. If mn is odd then so are both m and n . Let’s do a proof by contradiction. We must assume that either m or n is even and then prove that mn is even. Assume m is even. Then mn = (2r)(2q  + 1) = 4rq + 2r = 2(2rq + r), which is even. The same holds if n is even. We’ve completed our proof by contradiction and so have proven our original statement.

A Quick Little Proof

Let’s prove that \sqrt{3} is irrational. An irrational number is one that cannot be written in the form \frac{a}{b} , where a and b are both integers; in other words there is no repeating pattern in it’s decimal.

First, let’s prove that if n^2 is a multiple of 3 then so is n . Assume that n is not a multiple of 3 . Then n can be written as: n = 3m + \ell where \ell \in \{1,2\} . Then n^2 = 9m^2 + 6m\ell + \ell^2 . We can factor out a 3 , so n^2 = 3(3m^2 + 2m\ell) + \ell^2 . This implies n^2 is not a multiple of 3 since it’s an integer times 3 plus a number that isn’t a multiple of 3 (that’s the \ell part). We have proved the contrapositive which implies our original proposition (P \Rightarrow Q is the same as \neg Q \Rightarrow  \neg P ).

Now let’s move on to the main proof. Assume, by way of contradiction that the square root of 3  is rational. If the square root of 3 is rational then we can write \sqrt{3} = \frac{a}{b} with a and b not sharing any common factors. We can do some math: 3 = \frac{a^2}{b^2} which means 3b^2 = a^2 . But this means a^2 is a multiple of 3 since it’s an integer times 3 . We just proved that if n^2 is a multiple of 3 then so is n . This means that a is a multiple of 3. But if a is a multiple of 3 it can be written as 3m . Let’s plug this in to get 3b^2 = (3m)^2 , simplifying we get that 3b^2 = 9m^2 . Let’s divide through by 3 to get b^2 = 3m^2 . This means that b^2 is a multiple of 3 since it’s 3 times an integer. But again, if b^2 is a multiple of 3 then so is b . We started off by assuming that a and b had no common factors and we just showed that they share a common factor of 3 . We’ve derived a contradiction to our proposition that \sqrt{3} is rational, therefore it must be irrational.

Stock Price Simulation

Larry Wasserman presents an interesting simulation in Problem 11, Chapter 3 of All of Statistics. The problem asks you to simulate the stock market by modeling a simple random walk. With probability 0.5 the price of the stock goes down $1 and with probability 0.5 the stock prices goes up $1. You may recognize this as the same setup in our two simple random walk examples modeling a particle on the real line.

This simulation is interesting because Wasserman notes that even with an equal probability of the stock moving up and down we’re likely to see patterns in the data. I ran some simulations that modeled the change in stock price over the course of 1,000 days and grabbed a couple of graphs to illustrate this point. For example, look at the graph below. It sure looks like this is a stock that’s tanking! However, it’s generated with the random walk I just described.

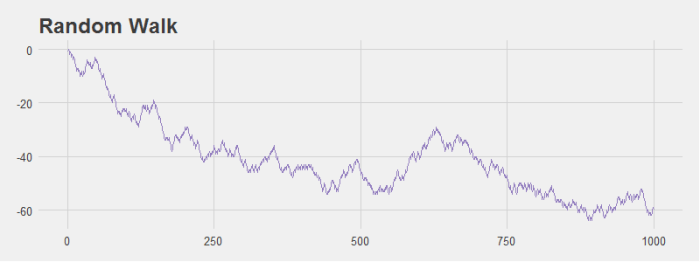

stock_plot1

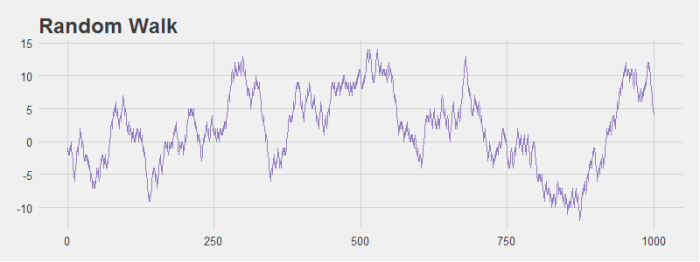

Even stocks that generally hover around the origin seem to have noticeable dips and peaks that look like patterns to the human eye even though they are not.

stock_plot2

If we run the simulation multiple times it’s easy to see that if you consider any single stock it’s not so unlikely to get large variations in price (the light purple lines). However, when you consider the average price of all stocks, there is very little change over time as we would expect (the dark purple line).

stock_plot3

Here is the R code to calculate the random walk and generate the last plot:

################################################################
# R Simulation
# James McCammon
# 2/20/2017
################################################################
# This script goes through the simulation of changes in stock
# price data.

# Load plotting libraries
library(ggplot2)
library(ggthemes)
library(reshape2)

#
# Simulate stock price data with random walk
#
    n = 1000 # Walk n steps
    p = .5 # Probability of moving left
    trials = 100 # Num times to repeate sim
    # Run simulation
    rand_walk = replicate(trials, cumsum(sample(c(-1,1), size=n, replace=TRUE, prob=c(p,1-p))))

#
# Prepare data for plotting
#
    all_walks = melt(rand_walk)
    avg_walk = cbind.data.frame(
      'x' = seq(from=1, to=n, by=1),
      'y' = apply(rand_walk, 1, mean)
    )

#
# Plot data
#
    ggplot() +
      geom_line(data=all_walks, aes(x=Var1, y=value, group=Var2), color='#BCADDC', alpha=.5) +
      geom_line(data=avg_walk, aes(x=x, y=y), size = 1.3, color='#937EBF') +
      theme_fivethirtyeight() +
      theme(axis.title = element_text()) +
      xlab('Days') +
      ylab('Change in Stock Price (in $)') +
      ggtitle("Simulated Stock Prices")


Simple Random Walk – Method 2

Suppose we consider a simple random walk. A particle starts at initial position z_i and moves one unit to the left with probability p and moves one unit to the right with probability 1-p . What is the expected position \mathbb{E}[X_n] of the particle after n steps?

In a previous post I presented a method to solve this by iteration. I’d like to present a different method to solve the problem here.

Recall we have:

X_i = \bigg\{ \begin{tabular}{cc} p     & x = -1 \\ 1-p & x = 1 \end{tabular}

We give it some thought we can see that after n steps we’ve simply added up our random variables to get our final location. We could define a new random variable:

Y = \sum_{i=1}^{n} X_i

So now all we need to do is take the expected value of Y . We can use rules of expected value to bring the expectation inside the summation and take the expectation of each individual X_i as we normally would.

\mathbb{E}[Y] = \mathbb{E}\big[\sum_{i=1}^{n} X_i \big]
\mathbb{E}[Y] = \sum_{i=1}^{n} \mathbb{E}[X_i]
\mathbb{E}[Y] = \sum_{i=1}^{n} -1 \cdot p + 1 \cdot (1-p)
\mathbb{E}[Y] =  \sum_{i=1}^{n} 1 - 2p
\mathbb{E}[Y] = n(1 - 2p)

This is the same answer we got via the iteration method. This also makes our R simulation easier. Recall we has this setup:

################################################################
# R Simulation
################################################################
# Generate random walk
rand_walk = function (n, p, z) {
  walk = sample(c(-1,1), size=n, replace=TRUE, prob=c(p,1-p))
  for (i in 1:n) {
    z = z + walk[i]
  }
  return(z)
}

n = 1000 # Walk n steps
p = .3 # Probability of moving left
z = 0 # Set initial position to 0
trials = 10000 # Num times to repeate sim
# Run simulation
X = replicate(trials, rand_walk(n,p,z))

Our code now becomes:

################################################################
# R Simulation
################################################################
n = 1000 # Walk n steps
p = .3 # Probability of moving left
trials = 10000 # Num times to repeate sim
# Run simulation
X = replicate(trials, sum(sample(c(-1,1), size=n, replace=TRUE, prob=c(p,1-p))))

# Calculate empirical and theoretical results
empirical = mean(X)
theoretical = n*(1-2*p)
percent_diff = abs((empirical-theoretical)/empirical)*100

# print to console
empirical
theoretical
percent_diff

Notice that for our random walk we can replace this function:

rand_walk = function (n, p, z) {
  walk = sample(c(-1,1), size=n, replace=TRUE, prob=c(p,1-p))
  for (i in 1:n) {
    z = z + walk[i]
  }
  return(z)
}
X = replicate(trials, rand_walk(n,p,z))

With the simpler:

X = replicate(trials, sum(sample(c(-1,1), size=n, replace=TRUE, prob=c(p,1-p))))

Additionally, in this second method we don’t need to specify an initial position since we assume from the beginning it’s zero. Of course both methods complete the same task, but they use different conceptual models. The first uses an iteration model, while the latter completes the “iteration” in a single step.

Distribution Mean Convergence

Suppose we want to simulate \frac{1}{n}\sum_{i=1}^{n} X_i for X_1, X_2, \dots , X_n \sim N(0, 1) , n = 1, \dots , 10,000 . Suppose we want to do the same for the Cauchy distribution.

In other words, we want to draw several random variables from a normal distribution and then take the average. As n increases we should get closer to the mean of the distribution we’re drawing from, 0 in this case.

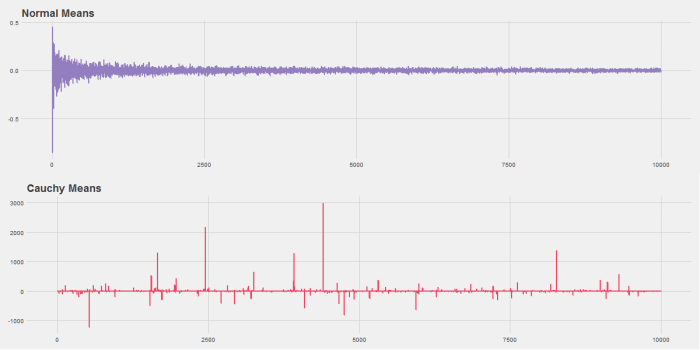

The R code below will do this. It produces this graph:
ch3-pr9

Notice that while the Normal distribution converges quickly the Cauchy never does. This is because the Cauchy distribution has fat tails and so extreme observations are common.

################################################################
# R Simulation
# James McCammon
# 2/20/2017
################################################################
# This script goes through the simulation of plotting both normal
# and Cauchy means for random vectors of size 1 to 10,000. It
# also demonstrates function creation and plotting.
# Highlight desired section and click "Run."

# Set working directory as needed
setwd("~/R Projects/All of Statistics")

###
# Calculate means and plot using base R
###

    # Set seed for reproducibility
    set.seed(271)

    #
    # Version 1: Simple
    #
    n = seq(from=1, to=10000, by=1)
    y=sapply(n, FUN=function(x) sum(rnorm(x))/x)
    plot(n, y, type="l")

    #
    # Version 2: Define a function
    #
    sim = function(x, FUN) {
      sapply(x, FUN=function(x) sum(FUN(x))/x)
    }

    # Use function to plot normal means
    x = seq(from=1, to=10000, by=1)
    y1 = sim(x, rnorm)
    plot(x, y1, type="l")

    # Use function to plot Cauchy means
    y2 = sim(x, rcauchy)
    plot(x, y2, type="l")

    #
    # Version 3: More complex function
    #

    # This function has:
    # (1) error checking
    # (2) extra argument options
    # (3) the ability to input any distribution R supports
    sim = function(x, FUN, ...) {
      if(!is.character(FUN)) stop('Please enter distribution as string.')
      dists = c('rnorm',
                'rbeta',
                'rbinom',
                'rcauchy',
                'rchisq',
                'rexp',
                'rf',
                'rgamma',
                'rgeom',
                'rhyper',
                'rlnorm',
                'rmultinom',
                'rnbinom',
                'rpois',
                'rt',
                'runif',
                'rweibull')
      if(is.na(match(FUN, dists))) stop(paste('Please enter a valid distribution from one of:', paste(dists, collapse=', ')))
      FUN = get(FUN)
      sapply(x, FUN=function(x) sum(FUN(x, ...))/x)
    }

    # We have to define our function in string form.
    # This will throw error 1.
    test1 = sim(x, rnorm)

    # We have to input a distribution R supports.
    # This will throw error 2.
    test2 = sim(x, 'my_cool_function')

    # We can input additional arguments like the
    # mean, standard deviations, or other shape parameters.
    test3 = sim(x, 'rnorm', mean=10, sd=2)

####
# Using ggplot2 to make pretty graph
###

    # Load libraries
    library(ggplot2)
    library(ggthemes)
    library(gridExtra)

    png(filename='Ch3-Pr9.png', width=1200, height=600)

      df1 = cbind.data.frame(x, y1)
      p1 = ggplot(df1, aes(x=x, y=y1)) +
        geom_line(size = 1, color='#937EBF') +
        theme_fivethirtyeight() +
        ggtitle("Normal Means")

      df2 = cbind.data.frame(x, y2)
      p2 = ggplot(df2, aes(x=x, y=y2)) +
        geom_line(size = 1, color='#EF4664') +
        theme_fivethirtyeight() +
        ggtitle("Cauchy Means")

      # Save charts
      grid.arrange(p1,p2,nrow=2,ncol=1)

    dev.off()
    # Print charts to screen
    grid.arrange(p1,p2,nrow=2,ncol=1)
